Pylontech 3.5kWh Lithium-Ion Solar Battery - US3000

Pylontech 3.5kWh Lithium-Ion Solar Battery - US3000

Regular price R 19,975.00 ZAR
Regular price Sale price R 19,975.00 ZAR
Sale Sold out
Shipping calculated at checkout.

Pylontech 3.5kWh Lithium-Ion Solar Battery - US3000

The Pylontech 3.5kWh Lithium-Ion Solar Battery - US3000 is an ideal solution for residential storage applications, with standard 48V/100AH specification, up to 90% usable capacity and 6,000 cycle-life warranty.

The US3000 is an HESS solar battery system provided by Pylontech, developed with their own lithium iron phosphate cell to ensure the highest safety value and most promising life cycle. A self designed Battery Management System (BMS) protects the cell from abormal temperature, current, voltage, SoH (State Of Health), SoC (State Of Charge)

Product Features:

  • Vertical industry integration ensures more than 6000 cycles with 90% DoD
  • Compact and fashionable design fits in your sweet home environment
  • Deliver up to 5KW with single module (3.5KWh)

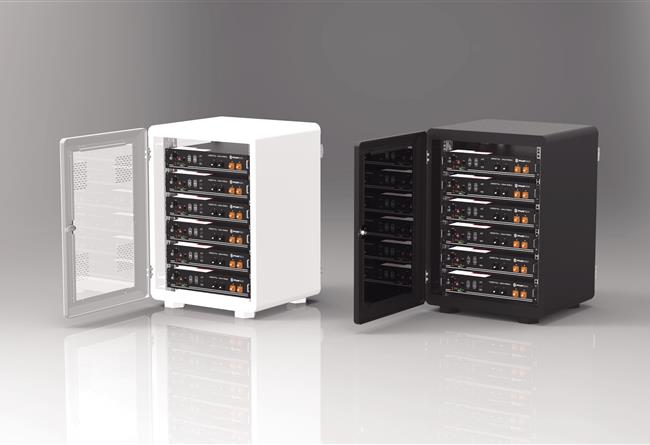

  • Modular design gives the end customers the power of choice of capacity
  • Compatible with most of the available Hybrid inverters
  • Simple buckle fixing minimize the installation time and cost
  • Safety Cert.TüV CE UN38.3


  • Nominal Voltage: 48V
  • Nominal Capacity: 3552Wh
  • Usable Capacity: 3200Wh
  • Discharge Voltage: 43-53.5V
  • Charge Voltage: 52-53.5V
  • Design Life: 10+ Years
  • Cycle Life: >6000 ( @ 90% DoD)
  • Size: 440 x 420 x 132 mm
  • Weight: 32 kg

Brand: Pylontech. Code: US3000


Shipping & Returns


Size: 45mm x 590mm x 520mm

Weight:14.104 kg
